Category Archives: Engine

Bowtie6 engines

New Fuel Pressure Regulator and Braided Lines

On this 2023 July 4th weekend, bowtie6 got treated to a new fuel pressure regulator and braided lines.  The old setup consisted of a GM style non-adjustable pressure regulator and a set of E85 resistant rubber fuel lines – I wrote an article about that (click here).  I was never really pleased with the rubber hoses because the braided lines are much nicer and bullet proof.  So I pulled the trigger and ordered parts for the new setup.

This is what the old setup looked like:

The new regulator is a high pressure version from Aeromotive with a matching fluid filled gauge.  This is the setup after the first fitment.  However, with all this bling that bracket just did not look good…And this is what I mean…

We had to cut the old mount and in the process the aluminum mount got scratched up pretty bad.  I tried to sand this down but didn’t make much progress.  Instead, why not just use some carpet material?

Ah! Much better!  A keen eye will also notice the difference in pressure.  I checked what the E67 PCM expected, and that was 58 lbs/in, so I bumped that up a bit.

The photo above, shows the whole setup.

  • On the left the box with the silver lid holds the high pressure fuel pump
  • The line going up from the pump goes into the regulator and from there is a return line back to the pump container and to the left the line going to the engine.  That is a hard stainless line that goes under the body to the engine compartment.
  • And finally the lines that feed the pump container.

High pressure fuel pump inside this enclosure

I’ve written about this setup in a prior post Ecotec Fuel System and ECOTEC Fuel System – Part 2 in case you want to read more about that.

And this is what the front looks like.  This is another braided line going into the fuel rail.  The other side connects to the stainless tubing under the frame of the car…

How to Control Electric Cooling Fans with an E67 PCM

E67 PCM and the C1, C2, C3 plugs

In this article I’ll go over how to control electric cooling fans with an E67 PCM.  I thought it might be nice to put this down in this long post in an attempt to help somebody else figure this out.  But first a little background…

HPTuners is our preferred method of modifying the engine computers (PCM’s) on the engine swaps I’ve helped my cousin Jim with through the years.  The tool consists of an interface that connects to the OBDII port on one side, and a USB adapter on a laptop.  There is the Editor and Scanner software components that let you do pretty much anything you want.  The proverbial catch is, there is so much to learn and not enough time…

I got an email from the good folks at HPTuners with an offer to upgrade our interface to the latest-and-greatest.  Included with the deal were several credits, so why not?  Well, this fired up my curiosity – once again – of getting bowtie6‘s PCM to control the SPAL electric cooling fan fitted to the radiator.  I say “once again”, because I have been down this path before with sub-optimal results.

The First Attempt

Engine management of the Solstice sourced ECOTEC in bowtie6 is handled by the  E67 PCM.  This PCM interacts with the engine by way of a modified Solstice wiring harness.  By this I mean, many circuits have been removed, such as anything to do with Air Conditioning – for example, the wires and plugs for the compressor, pressure sensors etc.  The wiring harness meets the PCM via 3 plugs:  the C1 plug has 56 pins and the C2 and C3 have both 73 pins.

When Jim and I prepared the wiring harness, we removed the wires that handled the fan relays.  We used a separate fan controller made by Centech as shown in the following picture:

Centech cooling fan controller

The controller makes ground and is connected to the fan relay.  The controller also receives a signal from an engine coolant temp sensor – NOT the one used by the PCM, instead Jim made a special adapter in the cooling system that houses the temp sensor for the Caltech device.  in the picture above you can also see a small knob on the left, and that is where you control when the fan “starts”.  So for all these years the fan has successfully been controlled by this device.  But in the back of my mind, the PCM has the ability to do this so why not let that control the coolant fan?

The Solstice comes with two coolant fans controlled by two separate pins on the harness.  The PCM makes ground, and in the stock setup they are connected to the control side of the fan relays.  I have only one fan installed in bowtie6 so in theory, I figured I could use the FAN 1 wire, connect it to my fan relay and that would control the fan.

Fully shrouded SPAL high-speed cooling fan

And much to my surprise, the PCM as it reached the fan “ON” temp, would ramp up the engine by adding a few more RPM’s and after a short delay, the fan started.  I thought “success!”:  the fan ran, extracted heat from the radiator and I was able to see the engine coolant temp come down.  But wait…  The fan refused to stop.

All this was done many years ago, soon after we got bowtie6 on the road.  I spent many hours trying to get this figured out, with no success.  I posted on the forums but went nowhere.  So, i gave up.  I left the wire in the harness, going nowhere.

The Second Attempt

A few weeks ago, after the new HPTuners interface came in, I decided to re-visit this issue once again, so I gave it a go.  I thought that surely, after all these years have passed there would be a solution somewhere on the web.  Well, not really.  I had to put together a few bits and pieces from several forums to find the solution:  turns out the E67 PCM needs to know how fast the vehicle is going and factors that in controlling when the fans turn OFF.

When we installed the Solstice sourced LE5 ECOTEC, we also included the Solstice’s 5 speed AISIN manual gearbox.  This gearbox was used in the Solstice/Sky as well as the Colorado pickup.  On the side of the gearbox is a reluctor that sends out the vehicle speed signal (VSS) to the PCM.  And this is done via a twisted pair of wires, a purple wire with the LOW signal and a yellow wire with the HIGH signal.

In my setup, I used the VSS signal to make the VDO speedo work.  The VDO speedo requires a constant pulse and the VSS signal worked perfect.  The VDO speedo has a “learn” mode where if you travel a mile it calibrates the pulses sent by the VSS and that translates to an accurate speed.  Sure enough, all this worked and is accurate when checked with a GPS signal on my iPhone.

Since the fitted gearbox is a manual, my research indicated there is no need to send the VSS signal to the PCM.  So we took out the VSS wires and pins when we modified the harness.  This left the PCM clueless as to how fast the vehicle is traveling.  And along with that, since the PCM had no frame of reference for speed, the fans would never shut off.

Solving this problem then, starts by splitting the signal from the VSS to a) feed the VDO speedo, and b) send the signal to the PCM.  It took a little effort but I did just that and found the correct location in the correct connector to supply the VSS to the PCM.  If you look at the photo of the PCM you will see I labeled with a Dymo tape, the three plugs – C1, C2, C3.  Suffice to say, it is much easier to modify the harness on a workbench than on a car already installed!  This can get confusing.

VSS Settings

I fired up the HPTuners Scanner and went for a drive.  The speedo signal was now showing but it was off.  And this comes as no surprise.  The PCM still had the original Solstice settings.  So the first change with the HPTuners Editor, was to enter the proper tire size and rear-end ratio.  Once I entered that in the Editor and downloaded that to the PCM, speed now shows dead-nuts on the Scanner.  I suppose for the purpose of the fans this might not be really necessary, but if we are going to go through all this trouble, might as well do it properly.

Fan Settings

The Solstice has two cooling fans.  They are controlled by relays and the ground on the control side of the relays is connected to two pins on the PCM.  One is labeled as “High Speed fan” and the second as “Low Speed fan”.

Since I did not want to go through all this trouble and still come up empty handed, wired up a spare relay base and relay, and connected a test light so I could make sure I had the right fan wire coming out of the PCM.  Using the HPTuners Scanner, there is a page where one can manually command a fan to come ON or OFF.  And sure enough, the test light came on when the high-speed fan was selected.  Next, I removed the test light setup and the fan relay instead.  I did the dry-run again and this time the relay clicked and the fan started up.

Now to the fun part.  First, the main Fans page:

Fan Settings

For starters, the Fan Type:  I have left the fan as “Discrete”.  The other option is Pulse Width Modulated (PWM).  The discrete fan settings is used when the PCM is controlling a relay for an Off/On type setting.  The PWM setting is for when a fan that can run at different speeds is installed.  For the purpose of this post, I am working with a relay to control the fan.

Also, note where you can select the Number of Fans Fitted.  In this case, I left it at two.  More on this later.

Next, comes the confusing part.  The E67 PCM has to two tables that control fan behavior:  Fan Desired Pct vs Engine Coolant Temp (ECT) and Fan State Transition Desired % vs Current State:

Fan Desired Pct vs Engine Coolant Temp (ECT)

Fan State Transition Desired Pct vs Current State

The top chart is used to set the coolant temp required to turn the fan ON or OFF.  The bottom chart is used to set when the fan should turn ON or OFF.  Confusing?  Join the club.

OK – this is what I have so far:  I have left the Number of Fans Fitted at two.  Therefore this means we have a “Low speed” fan and a “High speed” fan as far as the computer knows.  I wired the “Low speed” ground to the relay control side.  Since I don’t have a second fan, the “High Speed” fan is irrelevant.

The “ON” conditions:

  • By reading the charts above, the “Low speed” fan transitions to the ON position with a Fan Desired setting of 36 (the 0->1) and that translates to ~214 degrees on the top chart.
  • If I had a second fan wired in, then the second fan would be ON at Fan Desired setting of 56 (1->2) and that translates to ~225 degrees on the top chart.

And now the “OFF” conditions:

  • If I had a second fan wiring in, the second “High Speed” would be OFF at Fan Desired setting of 48 (2->1) and that translates to around ~221 degrees on the top chart.
  • Finally the “Low Speed” fan (which is fitted) turns OFF at Fan Desired setting 28 (1->0) and that is ~210.

BUT remember, the only time the fan actually turns OFF is when the vehicle is moving.  So at a red light, the fan would continue to run even though coolant might be below ~210 degrees.  It is only when the VSS sends a signal the vehicle is traveling at ~15-20 mph that the fan will actually turn OFF once the ~210 threshold has been met.

In Summary

I have been able to successfully test the above settings.  The one SPAL fan does kick in at roughly ~214 degrees.  Once engine coolant reaches 214, I can audibly confirm the engine speeds up slightly and then after a slight delay, the fan kicks in.  If you look at the Fan Settings screenshot, you can see there is a Startup Delay setting.  I compared that to the settings on my 2014 Camaro SS with an L99 V8 (I know, apples and oranges) and for the Camaro, the delay is zero.  But duh, double the cylinders so I suppose in that case it does not matter.  For an engine with half the cylinders, this gives it a few seconds to “ramp up” before the hit of the fan kicking in.

The next experiment will be to play with the Number of Fans Fitted setting.  I ran into self-inflicted error when I wired up the single fan:  I wired it as the “High Speed” fan.  Clearly that was a mistake because the first fan to kick in is the “Low Speed”.  Wha happened when I did this was the fan would turn ON after coolant had reached ~225 degrees.  So the take-away here when using only ONE fan, is to use the “Low Speed” pinout to make ground in the relay control circuit.

This is a very long-winded version of my experiment.  And I know, might be a little confusing.  Especially the last two charts above.  I am still trying to wrap my head around all this.

But what about PWM?

Ultimately this is where we want to be.  I had a very long talk with my friend Michael Y. and we talked about PWM fans.  Michael has extensive knowledge of this and I tried to draw from his experience in the matter.  Perhaps we might get lucky and he might give some words of advice in the replies section.

The big advantage of the PWM fan would be to try to keep coolant temps consistent, rather than the way I have them in my purely ON/OFF settings.  In my case, the primary goal is to keep the engine from overheating at stop-and-go traffic.  But, it ultimately it would be nice to have the one SPAL fan running as a variable speed setup.

Griffin aluminum radiator – image taken from the bottom of the radiator facing forward

Width of Griffin radiator



Ecotec Timing Chain Guide Bolt

Timing chain guide bolt cover (circled in red)

The other day, I found an article about the poor design of the Ecotec timing chain guide bolt.  Specifically, how prone the bolt is to backing out.  In extreme cases, the bolt can get tangled in the timing chain and shear off.  Needless to say, having bolt fragments fall into the timing chain of a contact engine, could potentially cause rather expensive damage.

If I am not mistaken, the 2.4L Ecotec powering bowtie6 is the same engine currently installed in the Polaris Slingshot – so if you happen to own a Slingshot, then you might want to read on…

The Fix

Amazon has the replacement bolt made by Dorman – about $20.  Here is what the label on the box looks like:

Dorman Timing Chain Guide Bolt replacement part number 917-954

The factory bolt is tiny and you get to it by removing a “plug” on the front of the engine.  You can see that cover plug in the top photo on this post (i have added a red circle around it).  Once you remove this plug you can insert a long 10mm socket and take the bolt out; be careful though because you don’t want to drop it!  This is what the pair looks like once they come out:

Bolt on the left, cover on the right…

Here is the front of the engine with the bolt cover removed:

Removed the plug…

And this is what the new bolt looks like:

and replaced it with this…

Finally, this is what the new bolt looks like installed:

Replacement bolt securely in place…

Moral of the Story:

When my original bolt came out, it was not exactly “tight”.  I am afraid had I ran it longer it would have eventually backed out.  And this would not have been a happy time.  Some things I have learned from this:

  • Replace the Ecotec timing chain guide bolt – it is cheap and it is easy.
  • If you own a Polaris Slingshot, do yourself a favor and read up about this.  For a mere $20 you will save yourself a lot of grief.
  • I wanted to show more pictures of the new bolt but I am afraid of copyright issues.  Please, if you have read this far check out the Dorman Ecotec timing guide chain bolt page.  There is a wealth of information there; even a video.
  • NOTE:  I don’t get a penny from Dorman about this  I also very seldom endorse folks.  But, I have read enough (and watched a few videos) about this kind of failure and figured it be best to do a PSA about the damage potential running the original bolt.

As always, be safe and hope all is well with you.  If you have any questions, let me know…

Ecotec Intake Manifold Upgrade

Been a long time since I’ve done any work on bowtie6.  This little car is just like a trusted Timex watch – it takes a beating and keeps on ticking.  This weekend I installed an upgrade:  the other day, I came across a vendor that offered a phenolic intake spacer for the Ecotec.  The advantage of a phenolic spacer is to help reduce heat transfer from the head into the intake manifold.

The intake manifold my cousin Jim made when we installed the Ecotec in bowtie6 is all aluminum (in case you want to know more about it, here is the link to a previous article with details about the custom intake).  We did this because the original composite intake from the Solstice was just too large and would not fit because the steering shaft lives where the factory intake is attached to the head.

You can see the intake in today’s featured image above, and as you can imagine it gets a bit warm.  I suppose the amount of time air hangs around the intake manifold is minimal, but any improvement would be helpful.  So, I sent the $99 plus shipping for the phenolic spacer and a couple of days later, one of the brown trucks delivered this:

The phenolic spacer matches perfectly the GM intake manifold plate Jim used to build the custom intake and is exactly 1/4 inch wide.  The “kit” comes with new gaskets and several replacement bolts.  Sadly the bolts did not fit the head of the LE5.  When I trial fitted all this, I noticed the factory bolts were about 1/4 inch too short (duh!), so I had to go find replacements.  Fortunately the local NAPA store not far from home had them in stainless, no less.  Torque settings on these bolts is not high, so the NAPA bolts worked just fine.  Not bad for $8 and change.

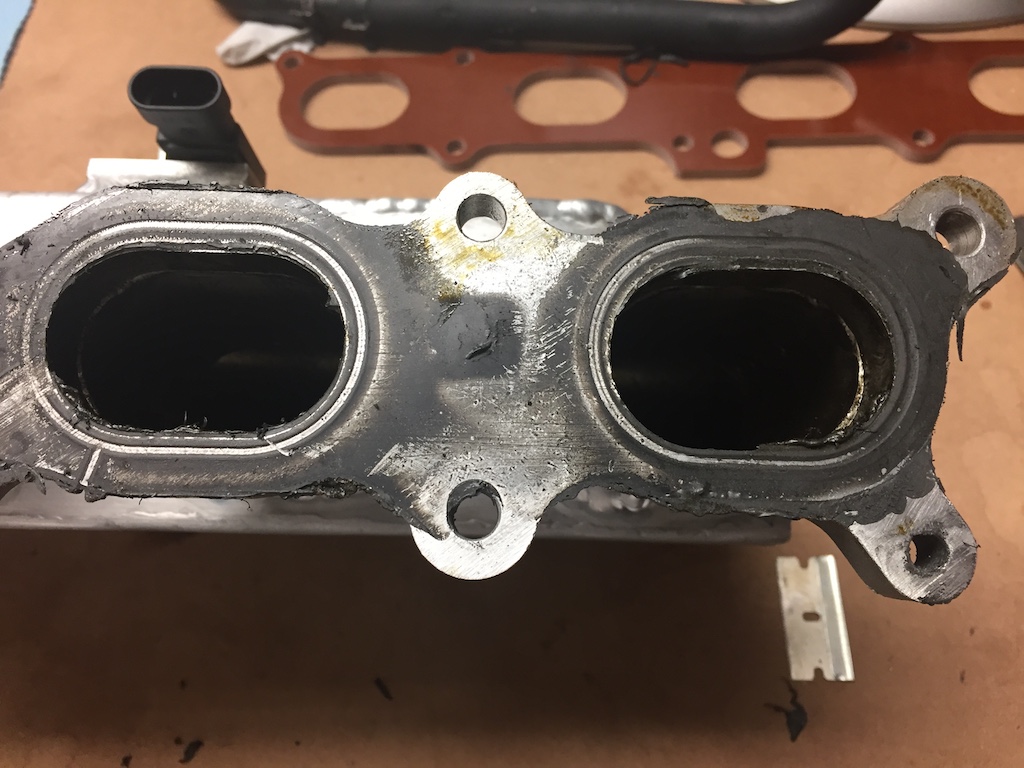

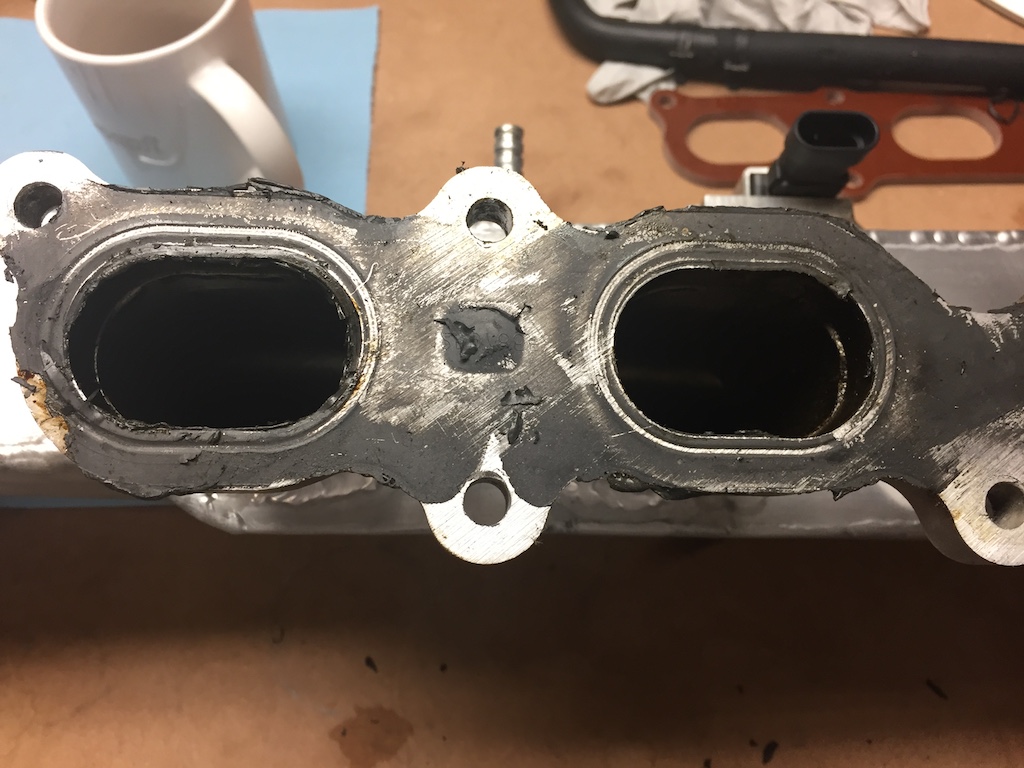

Taking the bolts out was a job!  There is just no room.  But, with a little patience and a few curse words, the manifold finally came out.  I remember I had used RTV on the original metal gasket and was left with quite a bit to clean up.  This is the intake manifold minutes after I had removed it.

And here we have the other side.  I had to remove the valve cover breather hose and the coolant hose.  You can also see the alternator is still bolted to the block (more on this later).After a little elbow grease, the head and the intake came clean.  From the mess in the the photos above, we have this:

Remember I mentioned the alternator being mounted?  Well, after trial fitting the whole affair, I found there was no way in hell the bottom bolts could be reached without dropping the alternator.  Here is what the phenolic spacer looks like in its new residence…

And here is a closeup…

I had to mark the spacer with “block side” and “intake side” so I could line up the new gaskets in the right direction.  Yes, they have a “side” – you can see that in the first picture above.

Then, the fun part:  getting it all back together.  As I mentioned the new bolts are about 1/4 longer, so it took some fiddling to get them lined up just right.  I had to pay close attention to the gasket orientation and used a bit of gasket adhesive on the gasket face next to the block and intake.  I left the faces that come in contact with the phenolic spacer dry because I did not want to risk damaging the phenolic material with the gasket adhesive material.

All that hard work, and you can’t even see the spacer!  So much of bowtie6 is like this too.

And so, it is time to start the engine and go for a ride.  But, we can’t have a good automotive project without the proverbial “oh shit” moment…

  • gaskets lined up – check –
  • bolts all accounted for – check –
  • no extra parts (yeah!) – check –
  • wiring connectors plugged up – check –
  • alternator properly bolted – check –
  • serpentine belt on – check –
  • engine coolant hose – check –
  • valve breather hose – check –

Get the keys, jump in and hit the ignition button.  Nothing.  Engine turned and turned, no fire.  Strong smell of fuel.

Damn!

I retrace steps.  Had to be something simple.  Turns out the plug for the injector harness is the exact same size as the one for the electronic throttle body.  I had them switched.  No wonder.  After swapping the electrical connectors, I tried to start the engine again.  This time, a cloud of smoke came out the exhaust – she was pretty flooded so I decided to let the engine idle for a few minutes.

Finally, backed the car up and went for a short drive.  I noticed no seat-of-the-pants improvement, but I did touch the intake when I returned and it felt much cooler.  I have no idea if all this is going to make a difference but there is no big investment here.  And yes, I would agree if you say that heat will still make it into the intake just by heat transferring through the bolts.

We shall see how this little experiment goes…



SuperTrapp Performance Tunable Exhaust

IMG_1485

Going through some bins in the garage this weekend, I found several spare discs for the Supertrapp performance tunable exhaust as mounted on bowtie6.  You can see the two discs in the picture above, towards the left.

I’ve written about the exhaust in a prior post (Click HERE) so I won’t repeat myself.  However, the idea behind the SuperTrapp tips is to control backpressure and noise.  This is accomplished by adding or removing those discs to the end tip of the exhaust.  The more discs, the less backpressure and the higher the decibels; consequently the less discs, the quieter it gets but the more backpressure accumulates.

So back to the two discs.  I got the notion to move things around as well as adding the two spare discs.  Here is what the two exhaust pipes really look like:

IMG_1486

So I decided to remove a disc from the right side pipe and add the others to the left side pipe.  As you can see, the left side comes out at a 90 degree angle from the main 3″ pipe.  So, I figured what the hell!  The worse thing that could happen is that it sounds like crap.

Well, much to my surprise the experiment has worked quite well.  Backpressure has been reduced, noise went up (but only during WOT) and overall acceleration feels better.  I know, this is all measured by what is transmitted via the seat to my arse.  Good enough for me.  I like it!
