Final Pics of the New TR6 Frame

Here is a final set of pictures of the new frame serving as bowtie6’s backbone.  The body has now been permanently bolted on, so this is the last set…

Some misconceptions have surfaced as to the origin of this frame.  Suffice to say this is NOT (repeat, IT IS NOT) a RATCO frame.  Those folks produce a nice aftermarket frame but this one is all bespoke and designed for the ECOTEC and the solid rear axle specifically.

Why so many entries on this blog about the frame?  Well, simply put:  I am very proud of it.  My cousin Jim Thompson has put together a very clever, lightweight and strong frame using modern frame-building techniques and materials while being able to retain some of the original TR6 bits.

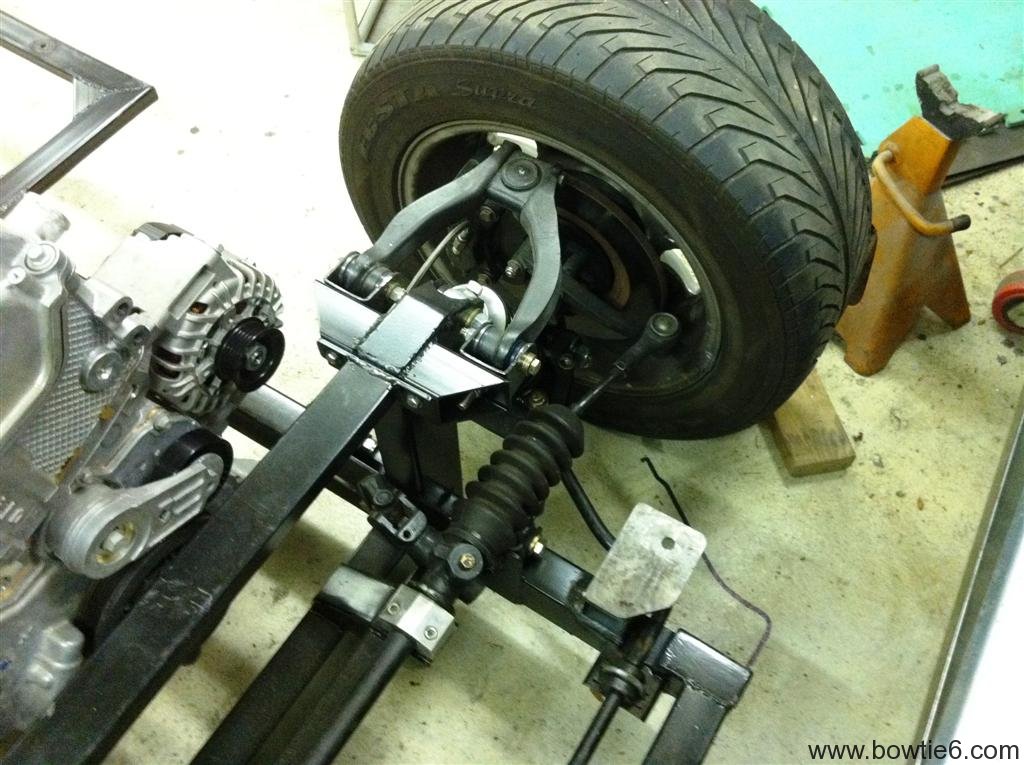

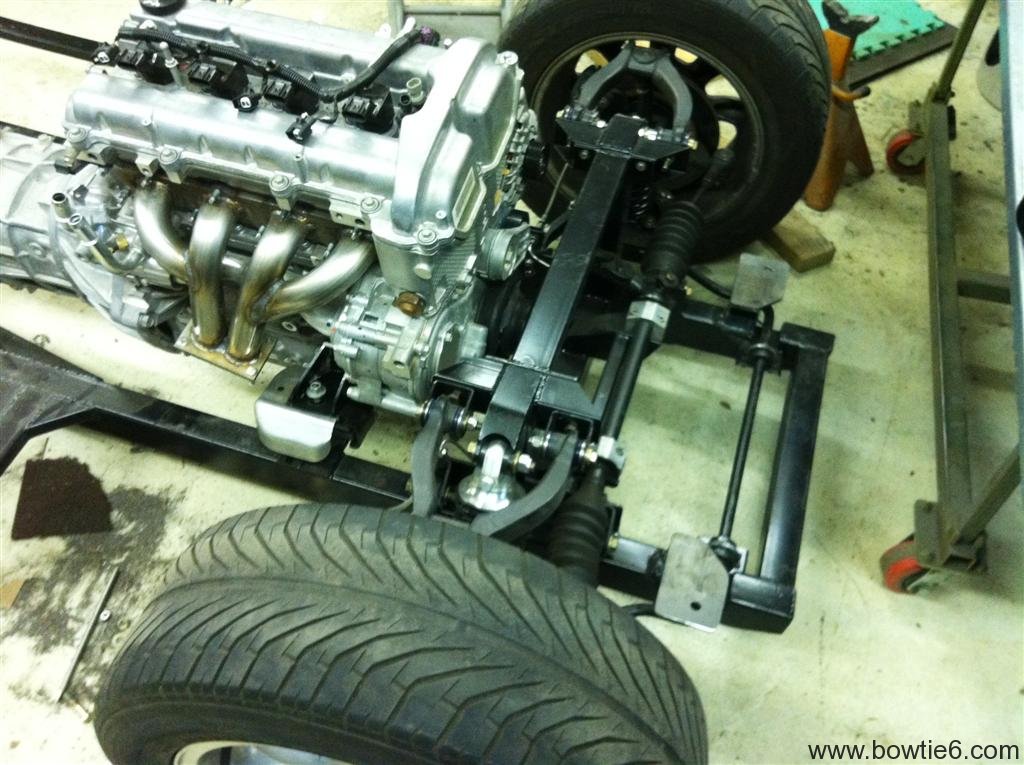

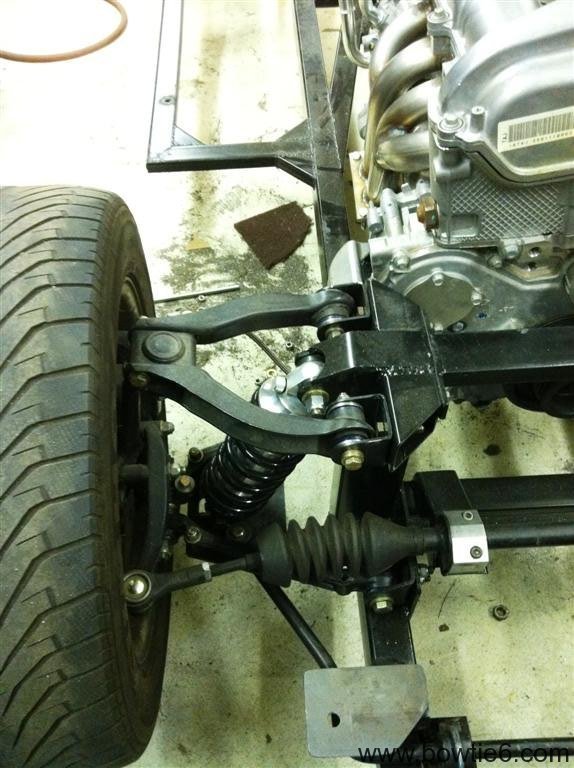

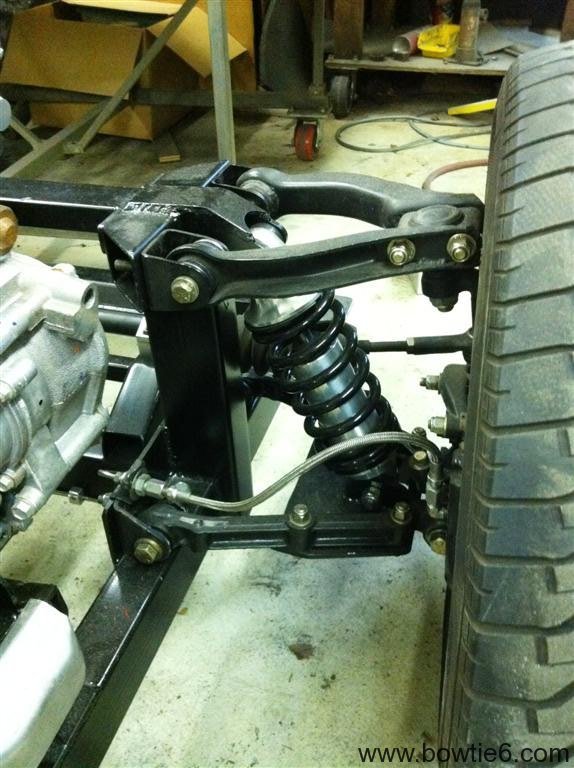

The front suspension is almost all stock TR6.  The “A” arms, ball joins, steering rack, sway bar, trunions, hubs and rotors are all stock Triumph.  The calipers are Wilwood.  The springs/shocks have been replaced with coilovers.  The coilovers offer several advantages:  no spring compressors, spring interchangeability and the ability to control ride height.  However, they are not cheap but worth every penny.

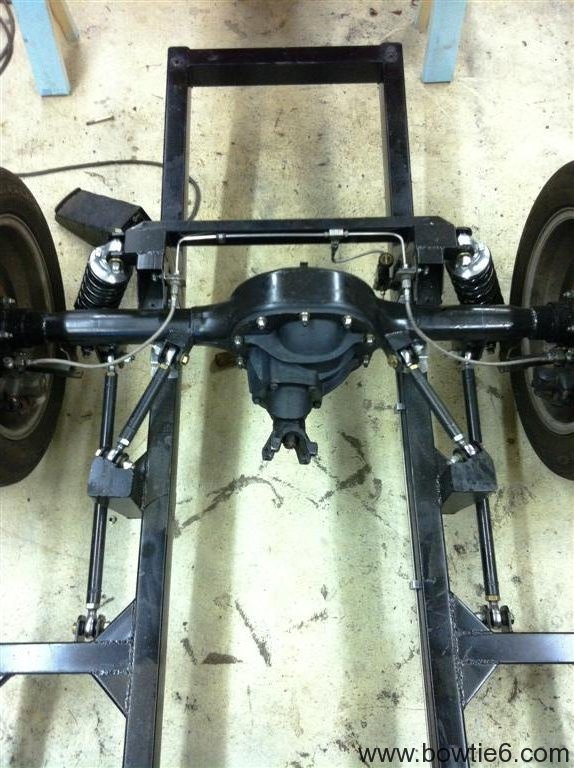

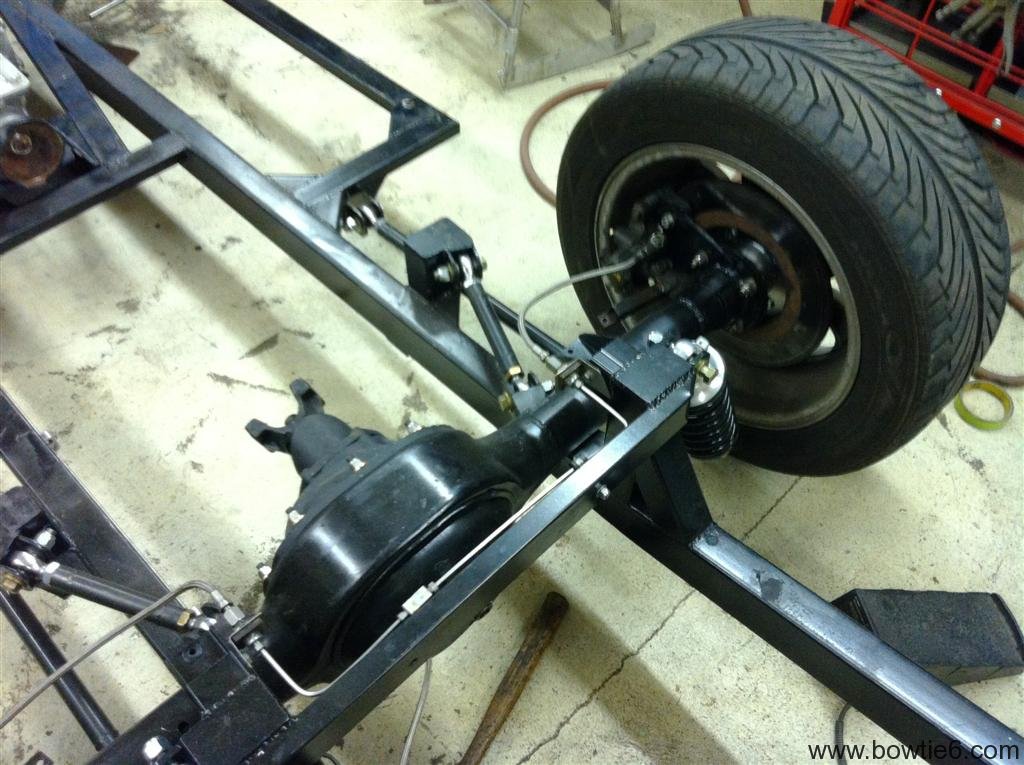

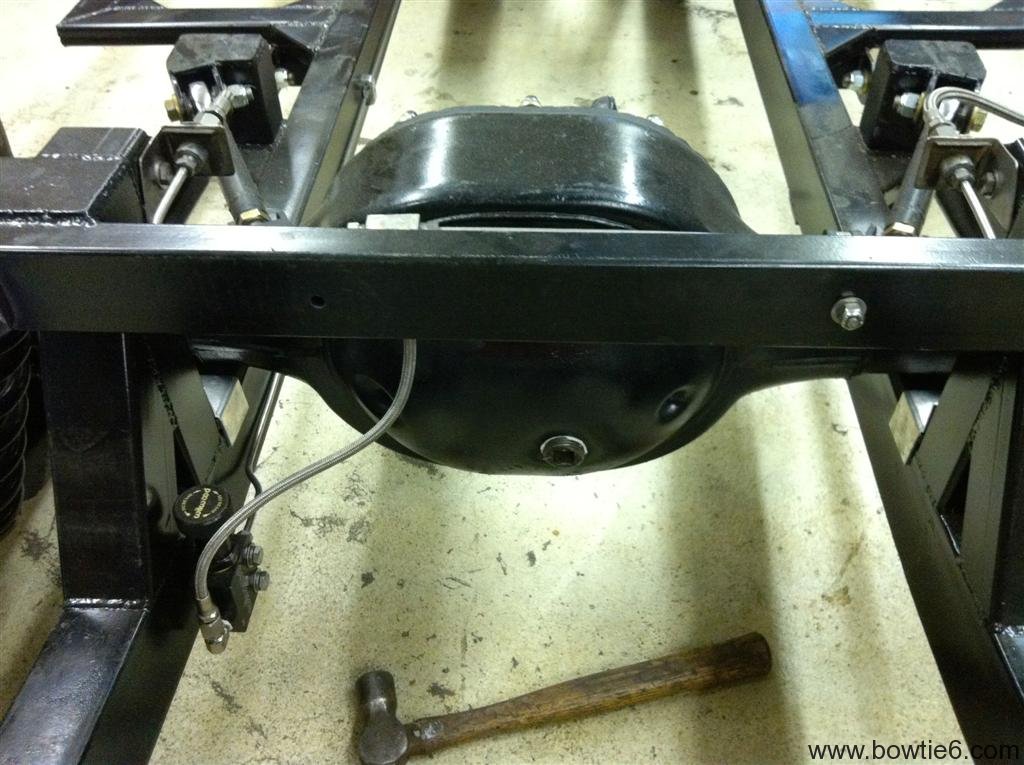

The rear is all new and it is trick!  The axle is an 8” Ford, custom sized.  It was cut on both sides and custom cut axles have been sourced from Moser.  The gears are from Motive; posi-traction (of course) with a 3.80 to 1 ratio.  Disc rotors and calipers are used on the rear end (with full emergency brake capability using the original TR6 cables and lever), as well as matching coilovers.  There is a four point suspension holding the axle in place with Heim ends on all four control arms.  We tried polyurethane ends, but they did not survive the power from the ECOTEC.  Enter the Heim ends.  Again, only the best have been purchased.  These are precision ground steel (normally used on sprint cars) along with special boots to keep debris out.  Brake and fuel lines are all hand made, hand fitted and hand formed from stainless tubing; with teflon lined, braided lines going to all four calipers.  Again, only the best has been sourced.

This is the second frame built using this design.  The first frame is under Jim’s TR4 and it has proven to be astounding.  It is very stiff – gone is the ‘flex’ that the original frame exhibits.  The new frame is made from much stronger square tubing.  This tubing is a solid square, not a “U” channel with a cap spot-welded as in the original design from Triumph.  I repeat, this is very strong stuff.

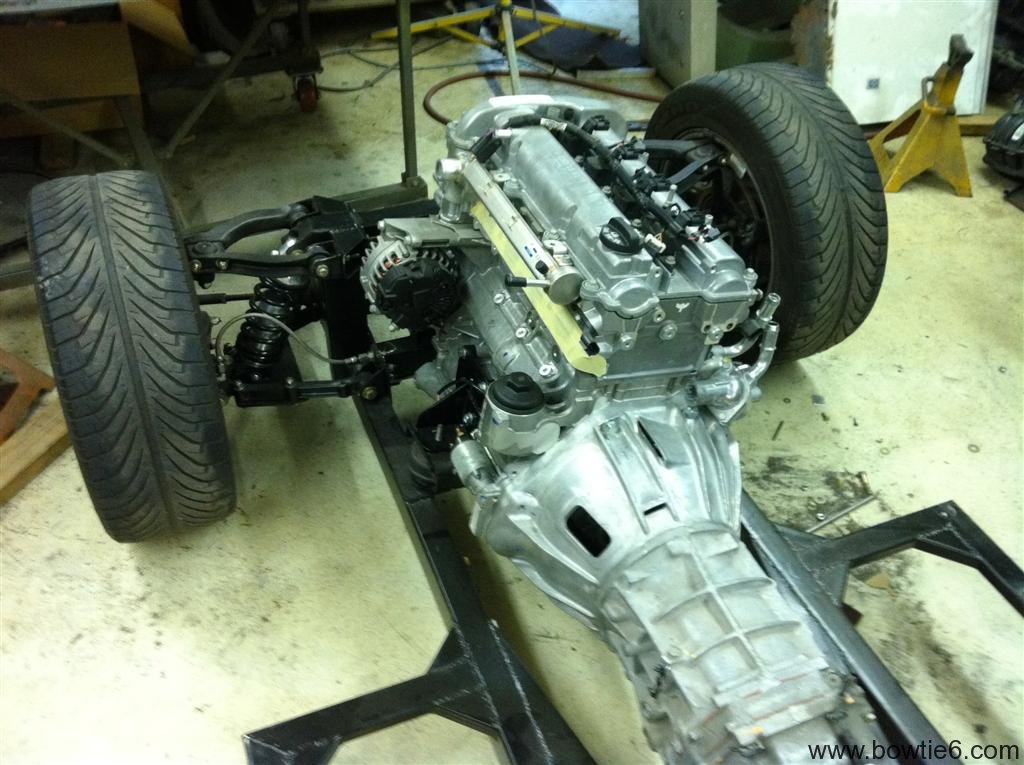

Finally, the ECOTEC 2.4 litre engine sits on special plates (on the frame side) that allow the use of the original Solstice engine mounts as well as tranny mount.  The mounts are really nice because they are made with rubber to help isolate vibrations.  Furthermore, the GM mounts have a locking mechanism that if the rubber ever fails the engine will only rock a very small distance and the locks keep it from making undesirable and expensive damage.

Finally some thoughts:

  • I realize this frame has nothing in common with the ‘original’ frame.  My condolence to the purists – but the idea is performance and this frame works and works very well.
  • I’ve read where folks discuss the shortcomings of the AISIN gearbox and say the gearing is all wrong.  Depends what you want to do:  bowtie6 is not built as a drag car.  Yes, first gear is a bit tall and that might not sit well with folks.  I don’t mind it.  From the experience gained from my prior setup and my cousin’s TR4, the car excels like a dream in second, third and fourth.  These three gears are quite simply awesome.  What about fifth?  Well, suffice to say that at speed and in fifth gear all you have to do is punch it and the car will take off.
  • The last thing about the new frame has come as a bit of a surprise to me.  In my cousin’s TR4 the steering “effort” has been reduced significantly.  The “far-back” engine placement has something to do with this.  But there is also the extra pressure of the original spring pushing on the “A” arms that has been deleted.  The new “feel” is much more positive, lightning-quick and a delight to use at parking-lot-speeds.

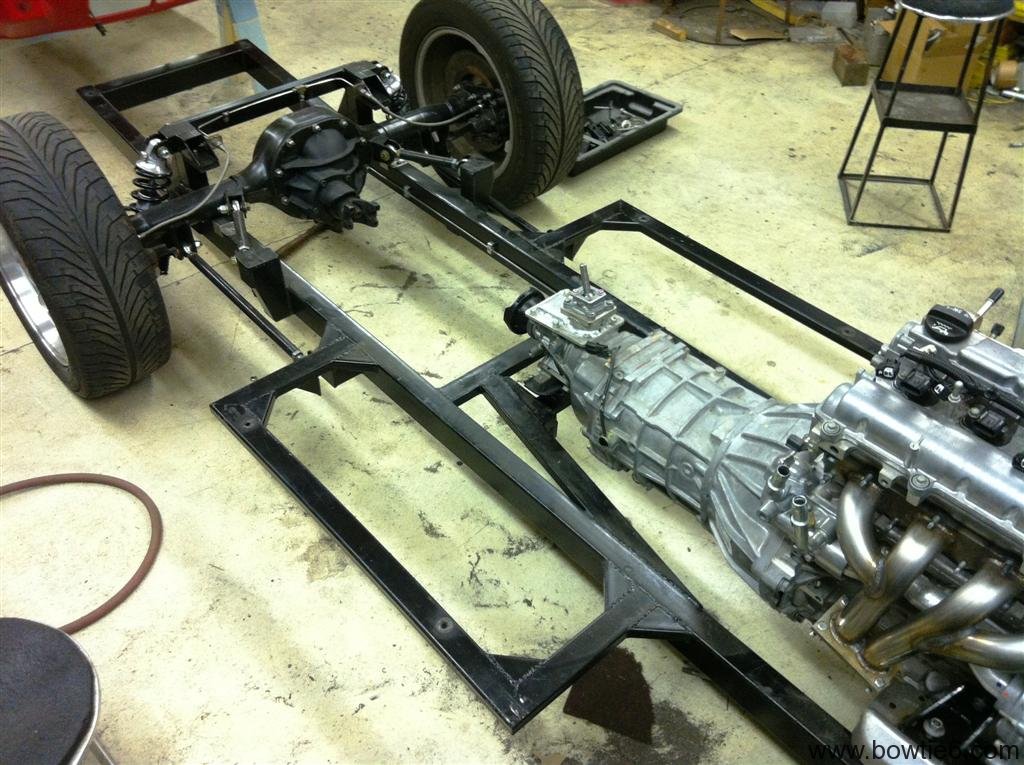

Here is the final picture gallery of the frame prior to the body being permanently installed.


7 thoughts on “Final Pics of the New TR6 Frame

  1. Gavin Dey

    I live in New Zealand and although the original frame of my car is OK, it has been patched prior to restoration by the PO, and it’s the most disappointing part of what is a beautiful car. I have acquired a VW VR6 engine which I have plans of fitting, and if I do proceed then I would want to build a new chassis at the same time as the cost of importing a Ratco or similar would be prohibitive.

    I’m really impressed by the simplicity of your design and feel confident that I could fabricate something similar (although I’d retain the factory rear end) to a high standard. The reason for my post is to enquire about the sizes of box section steel you have used for the various parts of the structure, and equally important, the wall thickness of each.

    Kind regards

    1. bowtie6 Post author

      Thank you for the inquiry Gavin.

      I do not recall what size square material we used to build the frame with, sorry. Let me try to go through some of my old documents though, and if I can find that I’ll send you an email.

      Good luck!

  2. Kristof Van Pachterbeke

    Your TR6 rebuild and upgrade has long been a source of inspiration for my TR4 project. You have definitely persuaded me to go for coilovers at the front. Would it be possible to post more pictures of the lower plate on which you have fixed the coilover? I have recently posted my project on the British V8 forum (,30501)

    Kind regards,

    1. bowtie6 Post author

      Interesting project you have there. The F20C redlines at 9,000 – should be a lot of fun in the TR4. I saw the pictures you posted – one question comes to mind: how are you planning to use the shifter? It is very high in relation to where the seats and driver’s position is.

      I’ll see if I can find some pictures of the coilover plates.

  3. Paul Trezzq

    I continue to read about your progress with great enthusiasm. We had a brief discussion about wheels and tires not too long ago
    Since then I have been discovering more about my TR6
    I have been doing a paper exercise to assess several possible paths for restoration.
    I am not interested in restoring to factory configuration but rather would like to make this a more reliable and thrilling machine
    An engine and transmission swap is now looking more and more like the path forward.
    I am thinking 200-225 HP is probably about right for the size of this car.
    I have found 2 companies making after market frames RATCO and Fast Car.
    Does your cousin have any intention of building frames for folks outside the family?

    1. bowtie6 Post author

      Thanks for your comments – they are highly appreciated.

      Regarding the frame: this is a question that has come up before. We have discussed this, and the short answer is “yes”. For this, I would suggest you discuss your particular needs directly with my cousin. Send me an email at info at bowtie6 dot com and I can give you the necessary info so you can get in touch with my cousin and discuss a frame with him.
